Kitchen Cabinet Woodworking: How to Build Cabinets From Scratch

/ woods / By

Kitchen cabinet woodworking comes down to four decisions: how you build the box, whether the front gets a face frame or goes frameless, what kind of door and hinge you hang, and how you get everything level during installation. Get the carcass square early and the rest of the build lines up on its own.

This guide walks through building a base cabinet carcass from plywood, choosing between face frame and frameless construction, building framed or slab doors with overlay or inset hinges, building drawer boxes, and installing the finished run. Budget roughly $40-$80 in lumber and plywood per linear foot of cabinet, depending on species and plywood grade.

Kitchen Cabinet Woodworking Basics: Materials and Layout

Kitchen cabinet woodworking runs on plywood, not solid lumber, for anything bigger than a face frame or door panel. Baltic birch plywood holds screws better than construction-grade material and stays flatter over a humid kitchen season, since it has more thin plies and fewer voids per sheet.

Plan a full cut list before you touch a table saw. A single run of base cabinets along a 10-foot wall typically eats three to four sheets of 3/4″ stock plywood, plus 15 to 20 board feet of hardwood for face frames.

A first woodworking kitchen project should start with one base cabinet before committing to a full run down the wall. Mistakes on a single box are cheap to fix, and mistakes repeated across ten boxes are not.

If you’re setting up a dedicated build area for the first time, our guide to woodworking shop layout covers how to arrange a table saw, assembly bench, and finishing corner so a cabinet run doesn’t take over your whole garage.

Building the Base Cabinet Carcass

A standard base cabinet carcass measures 34.5 inches tall and 24 inches deep, and runs anywhere from 9 to 36 inches wide, leaving room for a countertop that finishes out around 36 inches off the floor. Build the sides, bottom, and stretchers first, then square the box before any glue sets.

Carcass Joinery: Dado, Rabbet, and Edge Gluing

A dado cut into the cabinet sides holds the bottom panel square without relying on screws alone. A stacked dado blade cuts a flat-bottomed groove in one pass, replacing the six or eight passes a single kerf blade needs to open the same channel.

Cut that dado a hair over 1/4 inch deep, sized to the actual thickness of your plywood, since nominal 3/4-inch plywood often measures closer to 23/32 inch. Rout or saw a rabbet along the back edge of both sides to seat a thin plywood back panel, which squares the whole carcass once it’s screwed into place.

Edge gluing solid wood face frame stock happens before it’s attached to the carcass, not after. Glue two or three narrower boards into one wide rail so the grain direction runs consistent across the face frame instead of fighting itself where the boards meet.

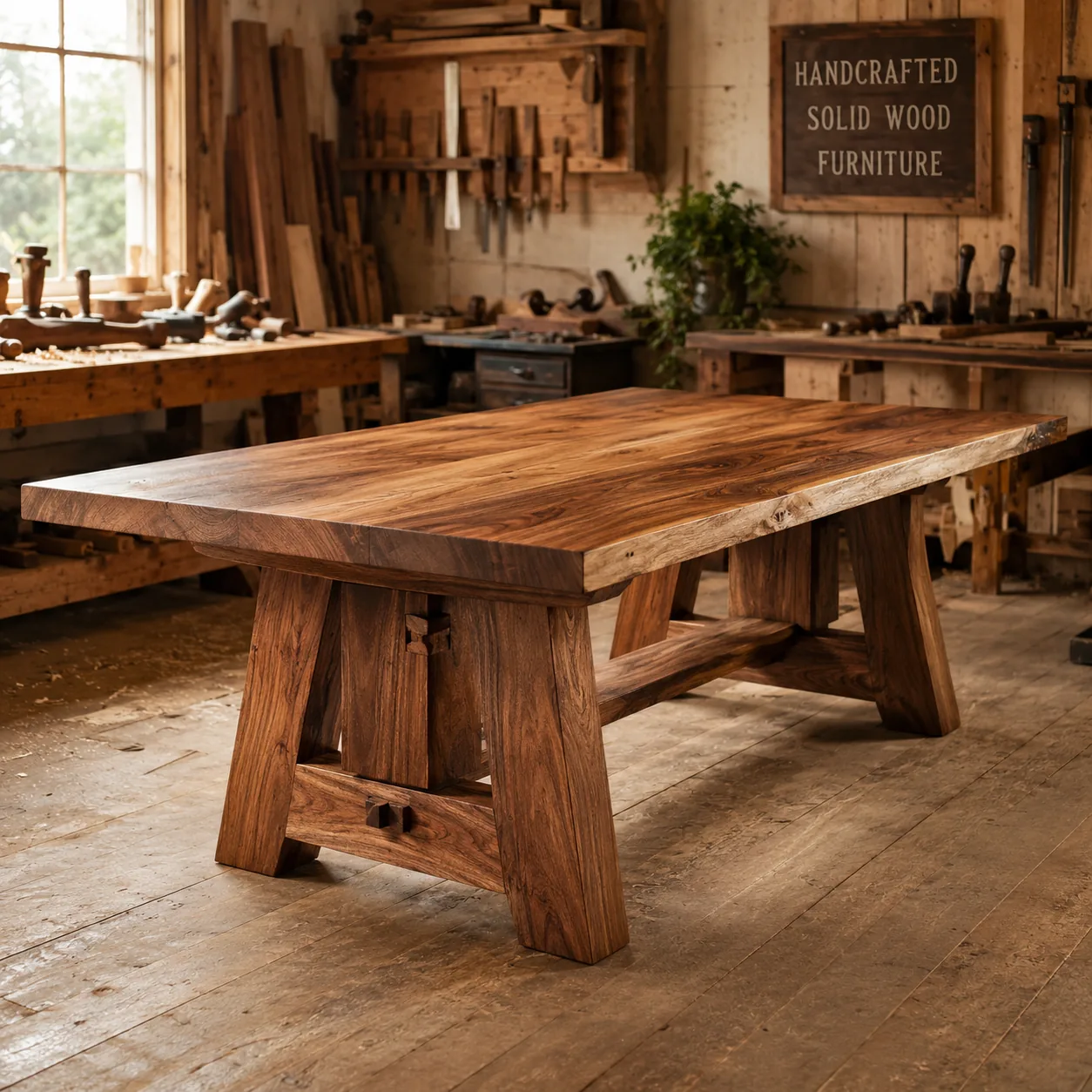

That same edge-gluing technique isn’t unique to cabinets. Our diy dining table build glues up wide panels the same way for a tabletop, where matching grain direction across the seams matters even more since the whole surface stays on display.

Clamp every face frame glue-up with F-style clamps and let it cure fully before trimming to final width. Trimming too early can open a hairline gap at the joint that shows up later under finish.

Face Frame vs. Frameless Cabinet Construction

A face frame cabinet adds a solid wood frame across the front of the plywood box, covering exposed edges and adding rigidity. A face frame also forgives small carcass errors, since the frame hides a slightly out-of-square opening that a frameless box can’t.

Frameless construction, sometimes called European-style, skips the frame entirely and relies on edge-banded plywood panels with full-overlay doors hanging directly off the box. Frameless carcasses need tighter tolerances since there’s no frame left to hide a crooked edge.

Face frame builds traditionally lean on poplar or hard maple for a painted kitchen. Poplar takes paint without the blotching some open-grain species show, which is why it shows up in painted face frames so often.

A stain-grade kitchen calls for cherry or white oak face frames instead, matched to the door species so grain direction and color read as one continuous surface across the run. Pocket-hole joinery, run with a Kreg jig, attaches face frames to a plywood carcass quickly and holds up fine under normal kitchen use.

Cabinet Doors: Framed vs. Slab, Overlay vs. Inset Hinges

Getting woodworking cabinet doors right depends more on matching reveal and hinge type to the rest of the kitchen than on any single joinery choice. Two door styles and two hinge approaches cover almost every kitchen you’ll build.

Framed Cabinet Doors

A framed cabinet door, often called a frame-and-panel door, uses rails and stiles joined with a cope-and-stick cutter or a mortise-and-tenon joint around a floating center panel. The center panel rides in a groove so it can expand and contract across the grain with seasonal humidity without splitting the frame apart.

Slab Cabinet Doors

A slab door is a single flat panel, usually edge-banded plywood, with no frame or floating panel to build separately. Slab doors go together faster since there’s no joinery beyond cutting the panel to size and banding the edges, which is why frameless kitchens lean toward slab doors so often.

Overlay vs. Inset Hinges

An overlay door sits on top of the face frame or cabinet edge, covering the opening, and typically uses a concealed cup hinge bored into the back of the door with a 35mm Forstner bit. Full overlay doors leave roughly a 1/8-inch reveal between adjacent doors, keeping the door line looking continuous across a run of cabinets.

An inset door sits flush inside the face frame opening instead of covering it, which demands tighter tolerances since a wide gap looks sloppy and a tight door binds against the frame. Inset construction typically uses butt hinges or knife hinges mounted straight to the face frame, rather than the cup-and-boss hardware overlay doors use.

Whichever hinge you pick, dry-fit every door before final glue-up or finish. Test the swing, check the reveal with a spacer, and confirm the hinge cup clears the shelf inside before committing to hardware.

Finish Doors Before Mounting Hardware

Finish doors and face frames before mounting hinges or hardware, since finishing them in place risks drips on the floor and cabinet interior. Sand progressively through 120, then 180, then 220 grit before any finish goes on.

Wipe on a wood conditioner ahead of stain on cherry or maple to prevent blotchy absorption. Top coat with polyurethane for the most durable film in a kitchen, or wipe on tung oil if you want an easier hand-rubbed sheen instead.

Building Kitchen Cabinet Drawer Boxes

A drawer box is a separate structure from the drawer front. Build the box first from 1/2-inch plywood or solid poplar, then attach a face frame front or slab front afterward once the box itself is square.

Half-blind dovetail joints at the front corners have been the standard for generations, since a dovetail joint resists the pulling force of a loaded drawer far better than a plain butt joint held only by screws. Most hobbyist shops skip hand-cut dovetails on kitchen drawers and use a rabbet-and-dado joint instead, reinforced with pin nails and Titebond III glue.

Size the drawer box narrower than the cabinet opening to leave clearance for slide hardware, typically 1 inch of total width for standard side-mount slides. Bottom panels usually ride in a dado near the base of the box, which keeps the bottom from sagging under the weight of a drawer full of pots or utensils.

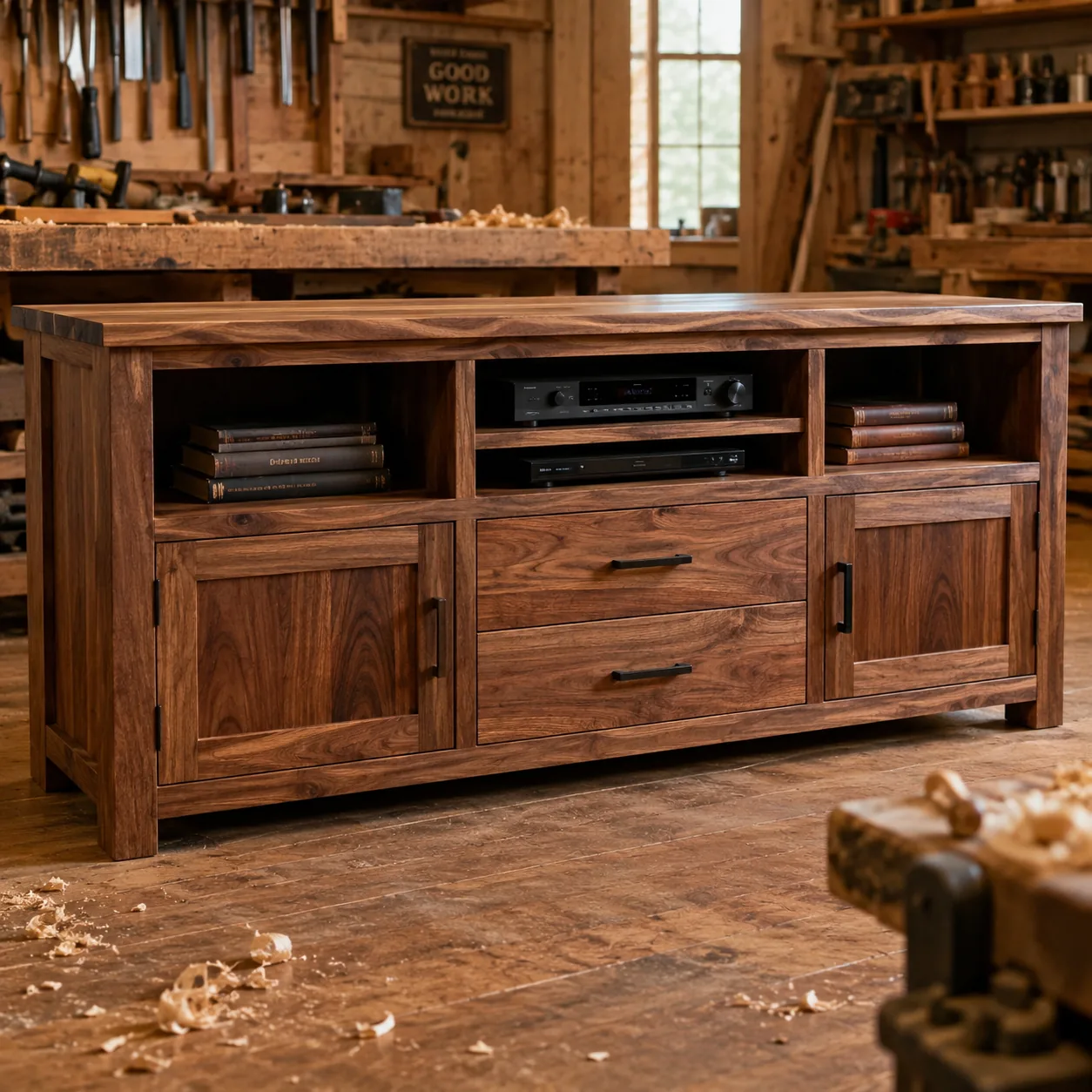

Door and drawer techniques from a kitchen build carry over directly to other furniture. Our diy entertainment center guide uses the same overlay hinge approach on a larger scale, for cabinet doors that hide electronics instead of dishes.

Installing Kitchen Cabinets

Finding and Marking Studs

Kitchen cabinets hang off wall studs, not drywall alone, so find and mark every stud across the run before lifting a single cabinet into place. Studs typically land on 16-inch centers, and a 2×4 actual 1.5-inch by 3.5-inch stud gives plenty of meat for a 3-inch cabinet screw to bite into.

Setting Base Cabinets Level

Set base cabinets on a temporary ledger board clamped to the wall at the finished height, then shim under each cabinet until it reads level across the front, back, and side. Screw adjoining cabinet face frames together first, through pre-drilled pocket holes, before securing the whole run to the studs, so the entire bank stays square as one unit.

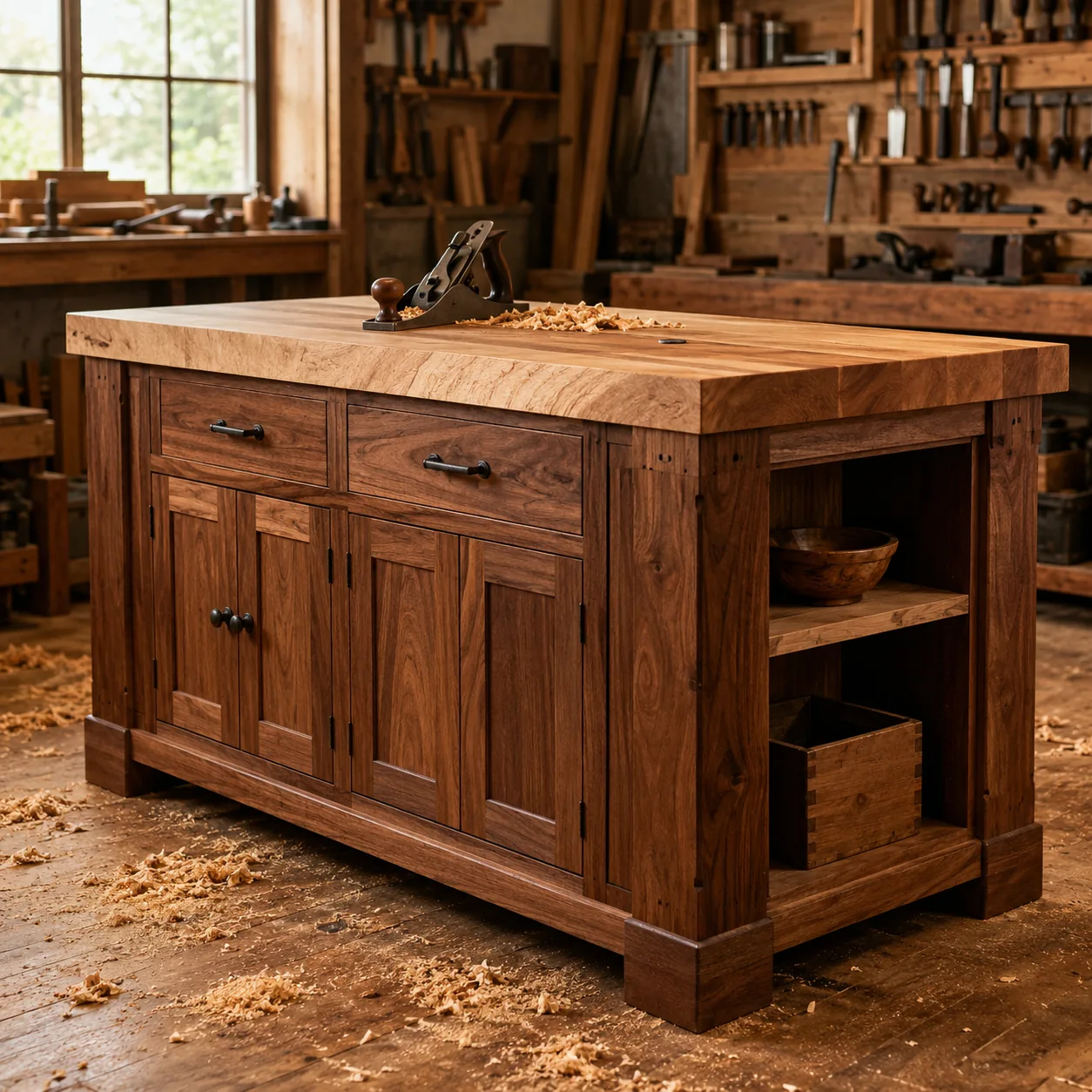

A kitchen with an island in the layout should have the island’s footprint marked on the floor before the base run goes in, so aisle clearance matches what was planned. Our diy kitchen island guide covers spacing and clearance for exactly that.

Final Fastening and Trim

Once the run is screwed to studs and tied together, pull the ledger board and fit any remaining fillers or scribe pieces against uneven walls. A scribe strip lets you plane or sand a face frame edge to match a wavy wall, and a random orbital sander knocks down a scribed edge before final touch-up.

Frequently Asked Questions

What’s the best wood for kitchen cabinet woodworking?

The right species depends on whether you’re painting or staining the cabinets. For a painted kitchen, poplar and hard maple are common picks because they take paint evenly without the blotching some open-grain woods show. For a stain-grade kitchen where the grain stays visible, cherry and white oak are popular, with black walnut showing up on higher-end builds where a darker, dramatic grain fits the design. Plywood, usually baltic birch, handles the carcass regardless of species choice, since solid wood carcasses are heavier and more prone to seasonal movement than a plywood box. Match face frame and door species so grain direction and color read as one surface once everything is installed and finished.

Should I build face frame or frameless kitchen cabinets?

Face frame construction is more forgiving for a first build, since the solid wood frame covers small carcass errors that would be obvious on a frameless cabinet. Frameless, or European-style, construction needs tighter tolerances on every panel because there’s no frame left to hide mistakes, but it opens up slightly more interior storage space per cabinet. Face frame cabinets also give more flexibility with door style, supporting both overlay and inset doors without extra work, while frameless kitchens almost always use full-overlay slab doors for a cleaner look. If this is your first cabinet run, face frame construction with pocket-hole joinery is the more forgiving path while you’re still learning to keep a carcass square.

What’s the difference between overlay and inset cabinet hinges?

An overlay hinge lets the door sit on top of the face frame or cabinet edge, covering the opening entirely, using a concealed cup hinge bored into the door with a Forstner bit. Overlay doors leave a small, consistent reveal, often around 1/8 inch, between neighboring doors across a run. An inset hinge lets the door sit flush inside the frame opening instead, which looks more traditional but demands tighter tolerances, since even a small gap is immediately visible. Inset doors typically use butt hinges or knife hinges mounted straight to the face frame rather than the cup-and-boss hardware overlay doors rely on. Overlay hinges are more forgiving of building errors and are the more common choice for a first kitchen cabinet build.

Do I need special tools to start woodworking kitchen cabinets?

You can build a full run of cabinets with tools most hobbyist shops already own: a table saw for breaking down plywood, a drill or driver for pocket-hole joinery, F-style clamps for glue-ups, and a random orbital sander for finish prep. A dado blade set makes carcass joinery faster, though a router with a straight bit can cut the same dado and rabbet joints if you don’t own one yet. A Forstner bit is worth buying specifically for boring concealed hinge cups if you’re hanging overlay doors. Beyond that, woodworking kitchen cabinets is more about careful layout and measuring than specialized equipment, so most first-time builders already own what they need to get started on a single base cabinet.

Key Takeaways

  • A standard base cabinet carcass measures 34.5 inches tall and 24 inches deep, with width varying by the run.
  • Face frame construction forgives small carcass errors better than frameless construction, making it the more forgiving choice for a first build.
  • Overlay doors use concealed cup hinges bored with a Forstner bit and typically leave a 1/8-inch reveal between doors.
  • Inset doors sit flush in the face frame opening and demand tighter tolerances than overlay doors.
  • Half-blind dovetail or rabbet-and-dado joints at the drawer box corners resist the pulling force of a loaded drawer far better than plain butt joints.
  • Cabinets hang off wall studs on 16-inch centers, not drywall alone, so mark studs before lifting any cabinet into place.
