A woodworking bed frame built with real rails, corner legs, and a headboard mount holds up for decades and can be repaired instead of replaced, unlike most flat-pack furniture. This build walks through a traditional bed frame woodworking project in queen size, covering the full cut list, joinery, and finish schedule using tools a home shop already has.
You don’t need a cabinet shop for this one. A table saw, a drill, a handful of clamps, and an afternoon of dry-fitting will get you a frame that’s square, quiet, and strong enough to last through a few mattresses.
- Bed Frame Woodworking Materials and Cut List
- Tools Needed for This DIY Bed Frame Woodworking Build
- Bed Frame Woodworking Plans: Step-by-Step Build
- Finishing Your Woodworking Bed Frame
- Common Mistakes in Queen Bed Frame Woodworking Plans
Bed Frame Woodworking Materials and Cut List
Pick your primary wood based on how much wear the frame needs to take. White oak holds up well for rails and legs. Hard maple works too, especially for legs that take side-to-side racking. Poplar is the cheaper call for slats and cleats since neither ever shows.
Grain direction matters most on the legs. Orient it vertically on each post so it resists racking instead of splitting along a mortise.
For a queen frame with a 60 by 80 inch mattress, plan on roughly 25 to 30 board feet of hardwood for the rails and legs. Add another 6 to 8 board feet for the slats and cleats. That secondary wood is usually poplar, since it’s inexpensive. Total lumber cost runs roughly $220 to $380 depending on species.
| Part | Material | Qty | Dimensions (Queen) |
|---|---|---|---|
| Side rails | White oak | 2 | 1.5″ x 5.5″ x 80″ |
| Headboard rail | White oak | 1 | 1.5″ x 5.5″ x 62″ |
| Footboard rail | White oak | 1 | 1.5″ x 5.5″ x 62″ |
| Headboard legs | Hard maple | 2 | 3″ x 3″ x 42″ |
| Footboard legs | Hard maple | 2 | 3″ x 3″ x 24″ |
| Center support rail | Southern yellow pine (2×4 actual) | 1 | 1.5″ x 3.5″ x 80″ |
| Center leg | Hard maple | 1 | 3″ x 3″ x 22″ |
| Slat cleats | Poplar (1×2) | 2 | 3/4″ x 1.5″ x 78″ |
| Slats | Poplar (1×4) | 11 | 3/4″ x 3.5″ x 58″ |
This build uses rails, corner legs, and a full headboard mount, not a low platform slab. If a simpler slat-on-a-base design without a box spring is what you want instead, our platform bed guide skips the leg-and-rail joinery entirely. Outfitting the whole room? The woodworking projects for your bedroom roundup covers matching nightstands and dressers.
Tools Needed for This DIY Bed Frame Woodworking Build
Most of this list is already sitting in your shop. The one specialty item worth buying is a Forstner bit sized to your bed rail hardware bolts, since a ragged hole there is the easiest way to end up with a wobbly frame.
- Table saw for ripping and crosscutting rail stock
- Miter saw or track saw for finish crosscuts
- Kreg jig for pocket-hole joints on the cleats and center support
- Forstner bit set for bolt holes and mortise cleanup
- Chisel set for squaring up mortise walls
- F-style clamps, at least six, for glue-ups
- Random orbital sander with 120, 180, and 220 grit discs
- No. 4 hand plane for fine-tuning tenon fit
- Combination square and tape measure for layout
Skip the jig if you’d rather cut these joints by hand. It takes longer, but the final fit is no worse once you dial it in with a hand plane. Buy F-style clamps in a few different lengths so you can reach both the rail-to-leg joints and the wide slat cleats without fighting for clamping room.
Bed Frame Woodworking Plans: Step-by-Step Build
These steps assume a queen frame using the cut list above. The same sequence works for any size; just adjust the rail and slat lengths.

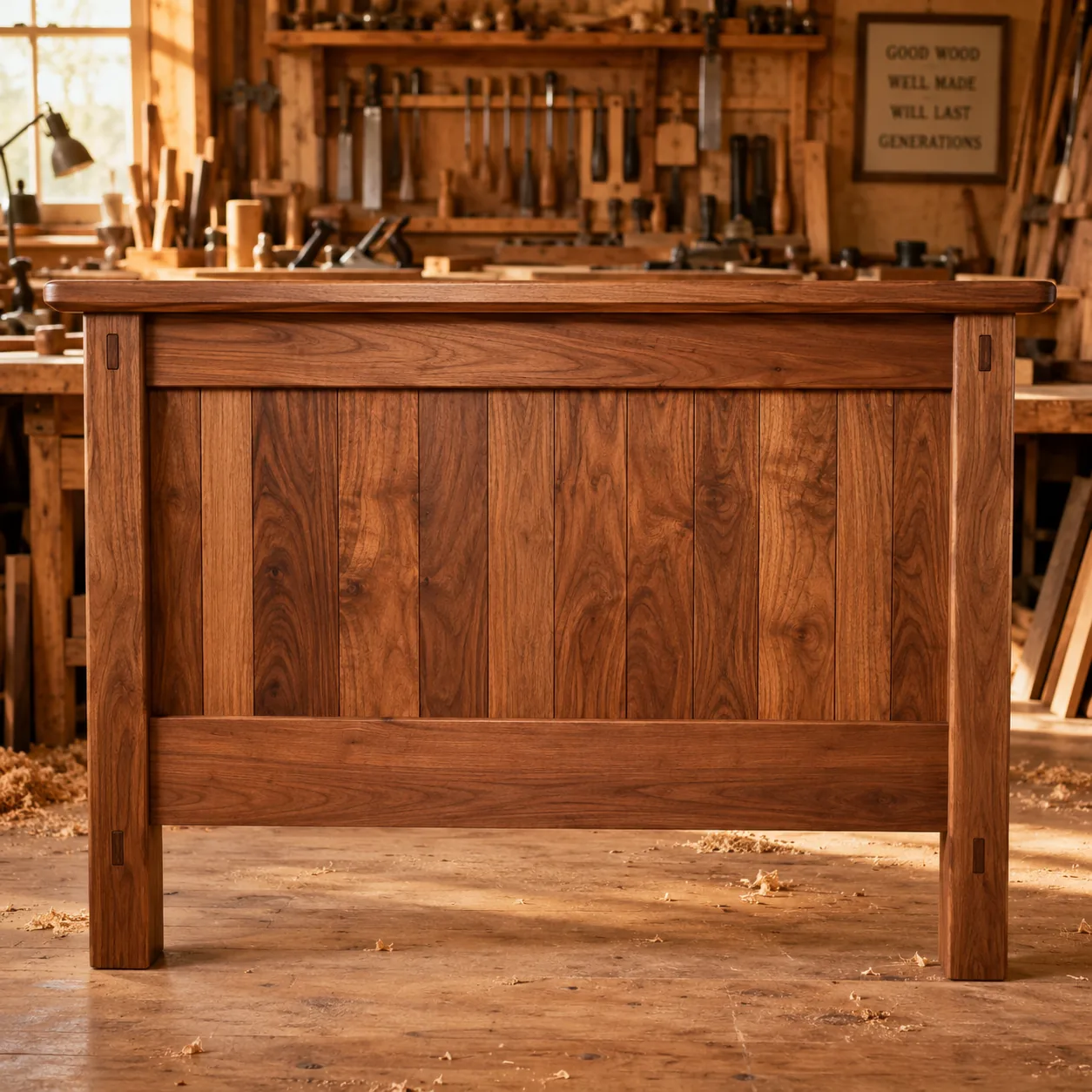

Building the Head and Foot Assemblies
- Mill all rail and leg stock to final dimensions, checking grain direction before any crosscut.
- Cut mortises in the headboard and footboard legs for the rail tenons.
- Cut matching tenons on the rail ends, sneaking up on a 1/8″ reveal fit.
- Dry-fit both assemblies completely before glue touches any joint.
- Glue and clamp the headboard and footboard assemblies, checking square as the glue sets.
Adding Rails, Support, and Slats
- Bolt the side rails to the headboard and footboard using bed rail hardware.
- Add the center support rail and its center leg; this is not optional on a queen frame.
- Attach slat cleats to the inside face of each side rail using pocket-hole joinery.
- Cut and space the slats evenly across the cleats, leaving a small gap between each one for airflow.
- Sand the whole assembly before moving on to finish.
Bed rail hardware brackets make disassembly possible later. Through-bolts are stronger but permanent once installed. The center support rail is usually southern yellow pine, since it’s hidden.
Finishing Your Woodworking Bed Frame
Sand the entire frame through 120, then 180, then 220 grit before any finish goes on. Hard maple can blotch if you skip a step here. Cherry does the same, so don’t rush the middle grits. A coat of wood conditioner first evens out absorption on blotch-prone species.
From there, tung oil gives a hand-rubbed, low-sheen look and is easy to touch up later. Danish oil works the same way but dries a little faster between coats. If the frame needs to survive kids or pets, polyurethane holds up better than any oil finish. Shellac makes a fast sanding sealer if you want extra grain pop under either oil or poly.
Between coats, a light pass with 220 grit knocks down raised grain without cutting through the finish. If you’re building the matching headboard from our headboard guide, finish both pieces from the same can so sheen and color match exactly. Let the final coat cure a full 24 hours before you set the mattress on the frame, and longer than that if the shop is cold or humid.
Common Mistakes in Queen Bed Frame Woodworking Plans
The most common mistake on a queen bed frame woodworking plan is skipping the center support rail. A queen frame spans wide enough that slats sag within a year without that extra leg in the middle.
Skipping the dry-fit step is the second most common error. A joint that looks fine dry can bind or gap once glue swells the wood fibers, and by then it’s too late to adjust.
Mixing moisture content is another quiet killer. Rails milled from air-dried stock next to kiln-dried legs will move at different rates and can open a glue line within a season.
Ignoring grain direction on the legs is the fourth mistake. Orient it vertically, or the post will split along a mortise under load.
Pocket-hole joinery alone is fine for slat cleats, but it’s too weak as the main rail-to-leg joint on a bed frame this size. Save it for secondary connections, and rely on mortise-and-tenon or through-bolted hardware where the real load lives. None of these mistakes are fatal, but each one is easier to prevent than to fix once the glue cures.
Frequently Asked Questions
How much lumber do I need for a queen bed frame woodworking plan?
Plan on roughly 25 to 30 board feet of hardwood for the rails, legs, and headboard mount, plus another 6 to 8 board feet of secondary wood for the slats and cleats. White oak or hard maple both work well for the visible rails and legs, while poplar is a common choice for anything hidden. Total lumber cost usually runs somewhere between $220 and $380, depending on which species you choose and how local pricing runs that season. Rough-sawn stock is cheaper than pre-surfaced boards, and buying an extra board or two beyond the cut list covers any piece that turns out warped or cracked once you get it home.
Can I build this bed frame without cutting mortise-and-tenon joints?
Yes. Pocket-hole joinery with a jig is a common substitute for the rail-to-leg connections, and it’s considerably faster to cut than traditional mortise-and-tenon joints. The tradeoff is strength under racking stress, since a bed frame gets pushed and pulled at the corners every time someone sits on the edge or shifts in their sleep. Back up the pocket screws with steel bed rail brackets at each corner rather than relying on the screws alone. Save true mortise-and-tenon joinery for the headboard-to-leg connection, since that joint carries the most repeated stress over the life of the frame and gets loosened and re-tightened the most over time.
What’s the real difference between this build and a platform bed?
This project uses side rails bolted between four corner legs, with the mattress supported on slats that run across cleats mounted inside the rails. A platform bed skips the leg-and-rail structure entirely and supports the mattress directly on a solid slab or a slat grid built into a low box, with no separate rail height to bolt into. The rail-and-leg version sits taller off the floor and needs a headboard mount built into the leg posts, while a platform design is usually lower and quicker to build in a single weekend. Pick based on how tall you want the finished bed to sit and how much storage clearance you need underneath.
Key Takeaways
- Queen bed frame woodworking plans need roughly 25-30 board feet of hardwood plus 6-8 board feet of secondary wood for slats and cleats.
- A center support rail and center leg are mandatory on queen and larger frames to stop slat sag.
- Mortise-and-tenon joinery is the strongest option for the headboard-to-leg connection; pocket-hole joinery works fine for cleats and center support.
- Sand through 120, 180, and 220 grit before applying any finish.
- Dry-fit every joint before glue-up to catch fit problems while they’re still cheap to fix.
- Total lumber cost typically runs $220 to $380 depending on species choice.
